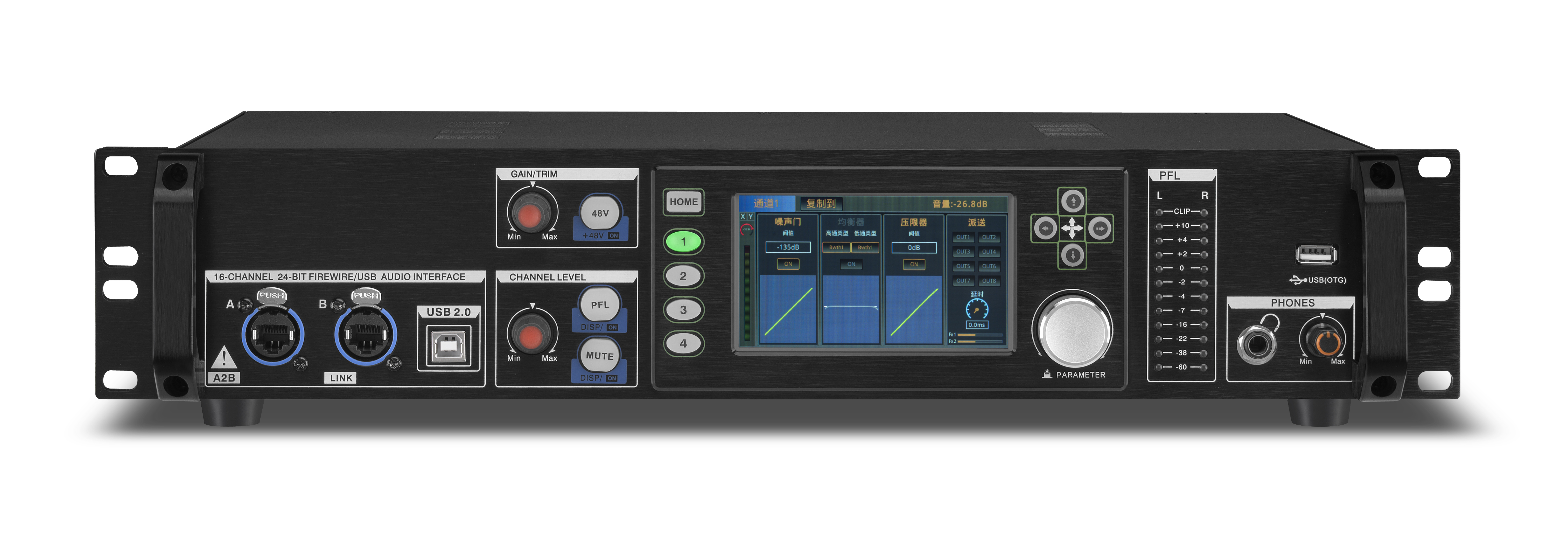

EX16-8

Product parameters

• 16 Channels MIC input 1 stereo inputs

  1Group Digital input: fiber / sound card, MP3

• Input channel pan adjustment

• MIC input gain adjustment (digital gain)

• +48V phantom power (MIC channels can be turned on and off independently)

• Built-in noise gate, Compressor, high and low pass, input 5 Bands equalization, delay, channel harmony adjustment

• Channel parameter fast copy function, Feedback Exterminator.

• Support input channels odd-even Joint adjustment

• Input and output EQ ON/OFF

• Multi-function knob

• Each channel has a multi-function menu, mute and monitor

• 8-channel signal output

• AUX output (before/after fader)

• Output processing: high and low pass filtering, 11-band parametric equalization, compressor, delay, phase

• Digital recording function

• Double row 3 color 12-segment level indicator

• Built-in sound card (MP3, PC directly play music)

• 4 quick scene recall modes, 20 modes storage

• User parameter storage and recall (can be managed on the pc side)

• Built-in two-channel dual DSP effects

•FX foot switch interface

•Fiber input/output

• Multi-OS operating system (IOS system, Android system, WINDOWS system)

•Support wired network port adjustment (or external router wireless adjustment)

• 4.3 inch 480*272 capacitive touch display

Machine size/weight

Length, width, and height: 480 * 290 * 100mm (length includes 6.35 input socket, width includes side panel, height includes machine feet; Excluding knobs)

Net weight: 6kg Gross weight: 6.2kg

Packaging size: 550 * 370 * 150MM

EX16-8 Two piece cardboard box with dimensions of 570 * 390 * 320MM, weight: 12kg

Applications: conference rooms, multi-purpose halls, small performances, small bands, government, schools, bars, wedding companies, rental companies, Ballroom, military, cultural halls, cultural centers, conventions, etc.
